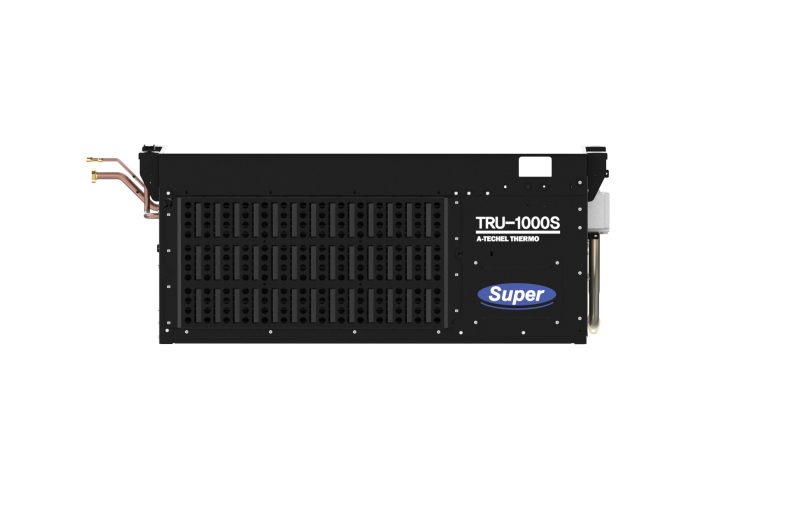

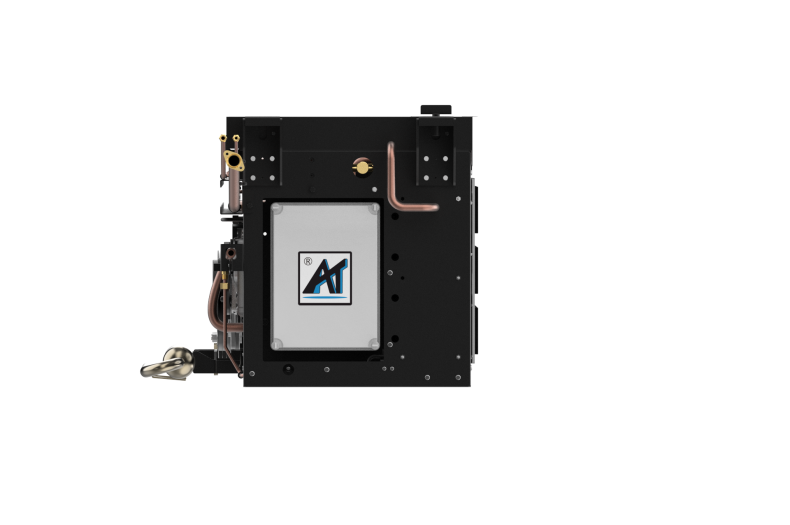

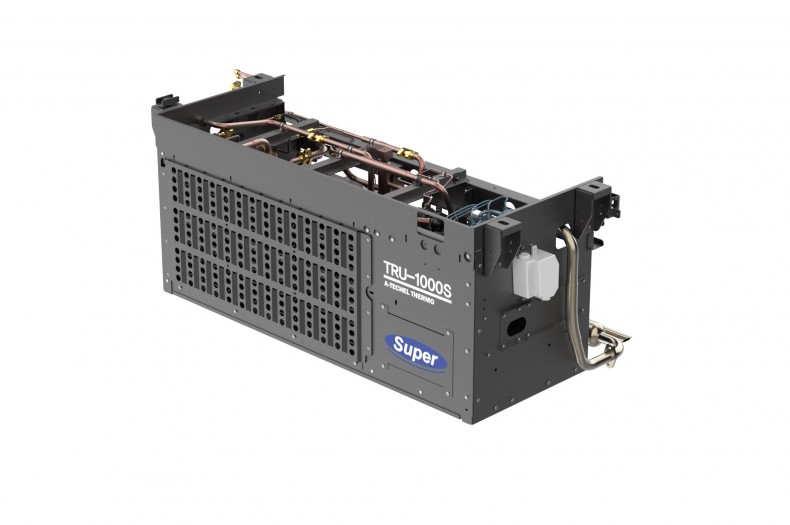

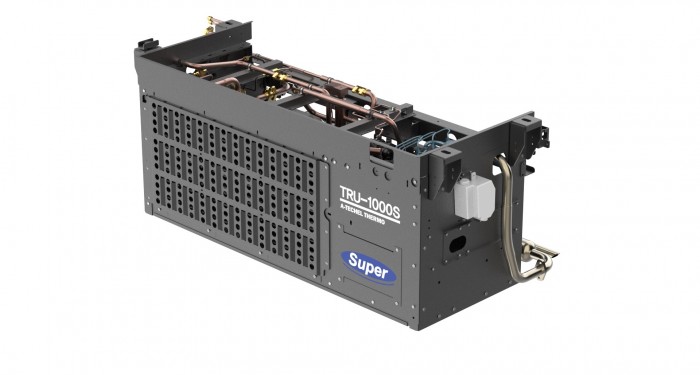

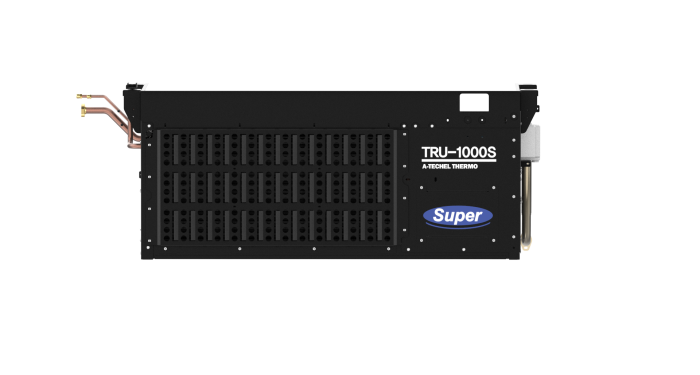

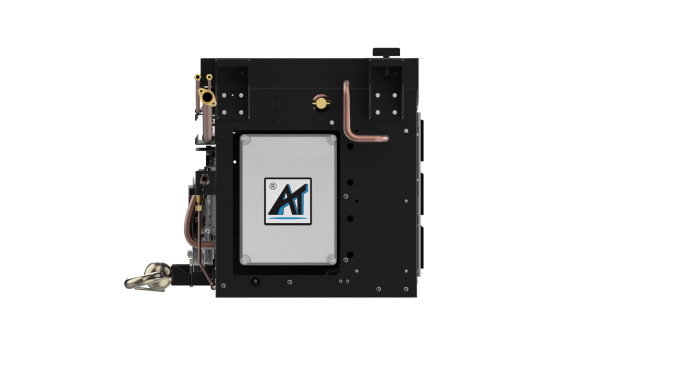

TRU-1000S WALL-TYPE

The TRU series is truck refrigeration system, which is developed by A-TECH EL THERMO’s highest technology.
TRU-1000S is driven by separated diesel engine, so that it is possible to proceed cooling system even the vehicle engine has shut down.

Description
Refrigeration system for medium truck
Compressor driven by sub diesel engine
Separated composition – under mounted condenser and wall-type evaporator

Feature
Advanced cooling capacity
Environment-friendly refrigerants
Various type of evaporators are available

Specification

* Please note, below information can be changed without prior notice to improve its quality and design.

Model		TRU-1000S WALL-TYPE EVAPORATOR
Engine	Model	KUBODA D-1105, JAPAN
	Cylinder	3 cylinders
	R.P.M	2,000～2,400
	Displacement	1105cc
Compressor	Pulley	Magnet Clutch
	Model	BITZER, GERMANY / 4TFRY
	Cylinder	4 cylinders
	Displacement	470cc
Condenser	TYPE, FAN	∅420 * 6B * 1ea
Condenser	FAN DRIVE	Driven by Engine belt

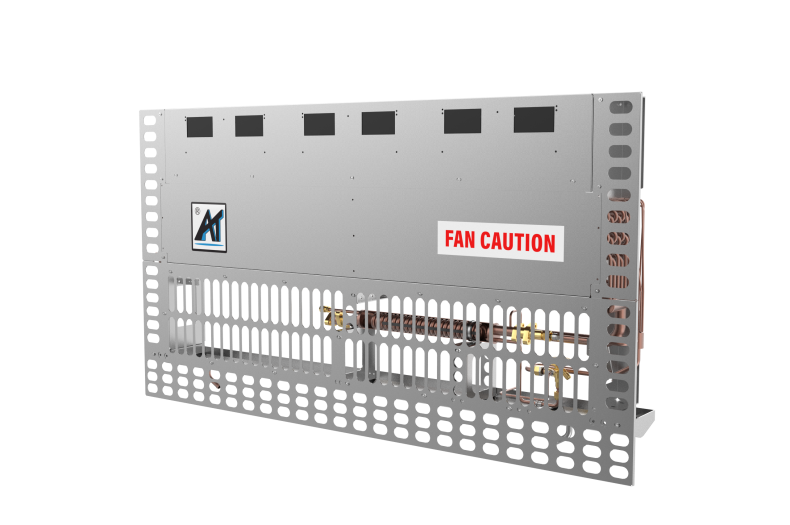

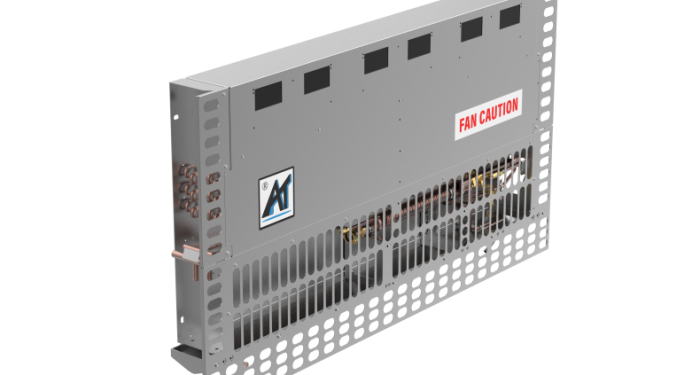

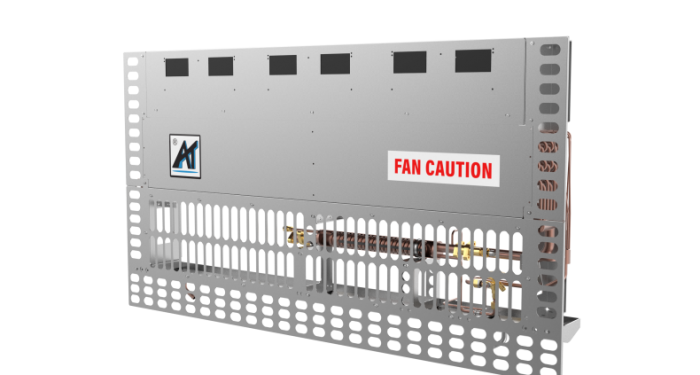

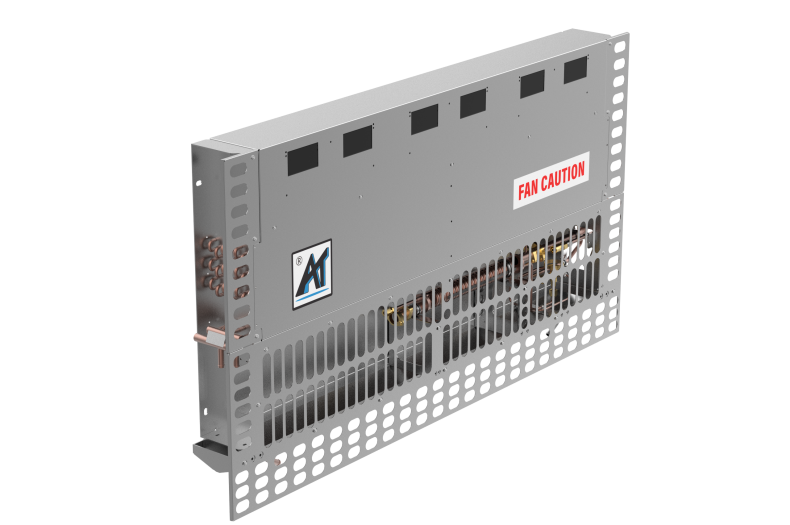

Evaporator	TYPE, FAN	Wall-type evaporator (L: 1620 / W: 170 / H: 820 )
Evaporator	FAN DRIVE	DC12V DOUBLE BLOWER FAN MOTOR * 3EA
Refrigerants		R-404A / 4.4Kg ± 100g
Defrosting		Hot gas auto-defrost or manual-defrost
Heating		1. COOLANT auto-control 2. Hot Gas operating simultaneously
Operation		*Temperature controller (LED display)
Operation		*Temperature setting & Automatic on/off system
Case		Frame : GI steel, Powder coating Grill : AL/TYPE
Weight		463KG
