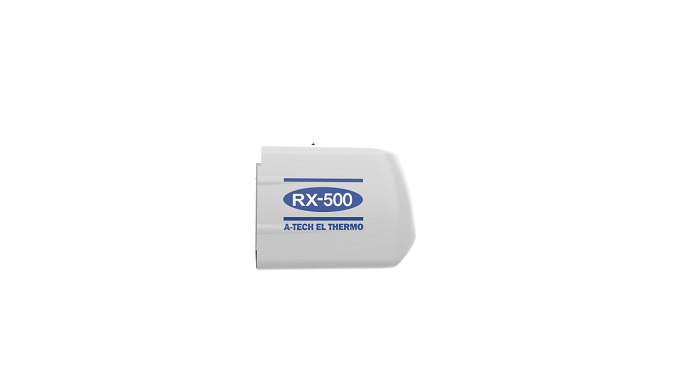

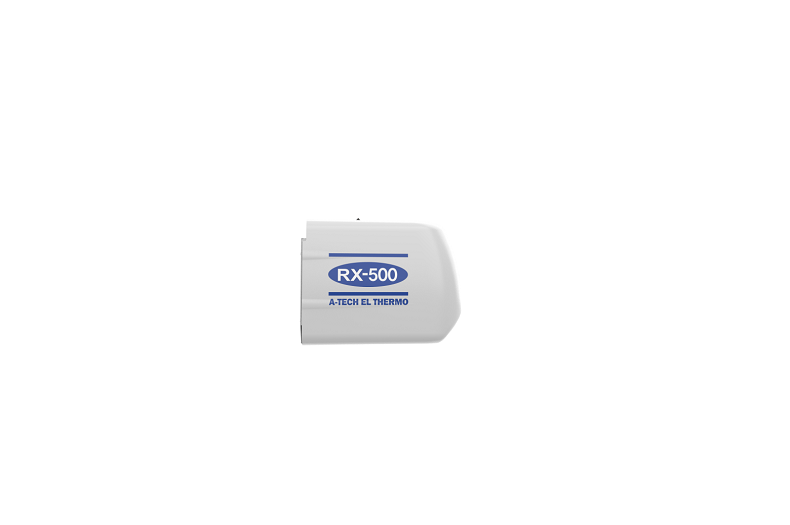

RX-500
VEHICLE ENGINE DRIVEN REFRIGERATION
- Description
- Rooftop mounted refrigerator for vans
Compressor driven by vehicle engine
Separated composition - 2 plastic axial fan condenser and 2 turbo fan evaporator
AC STANDBY (option)

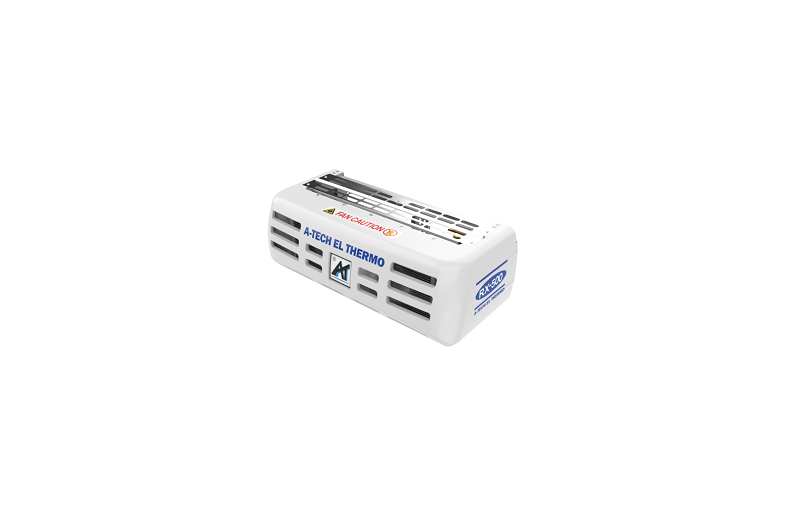

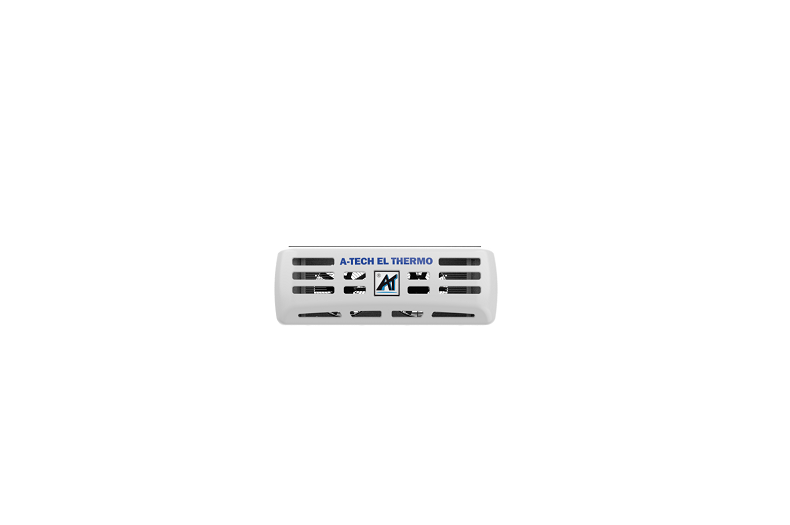

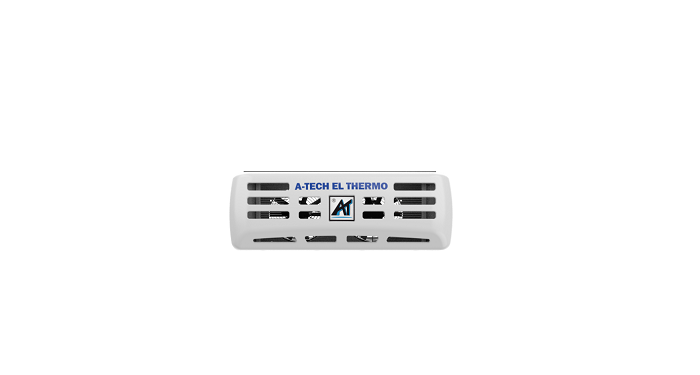

- Condenser
- Type - Copper tube / Aluminum fin coils
Fan - 2 plastic fan (280mm)
Weight – 32.9Kg
Dimension (LxWxH) – 1080 x 510 x 375

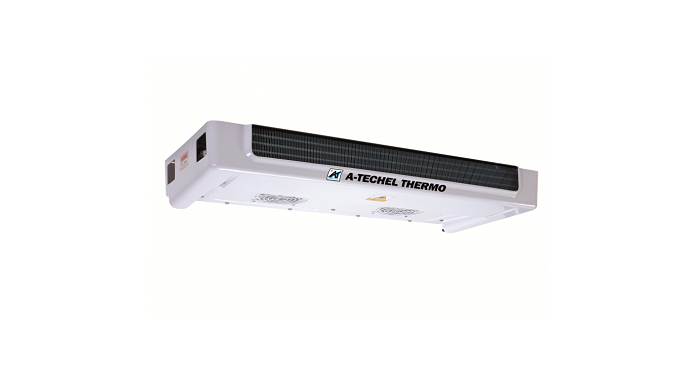

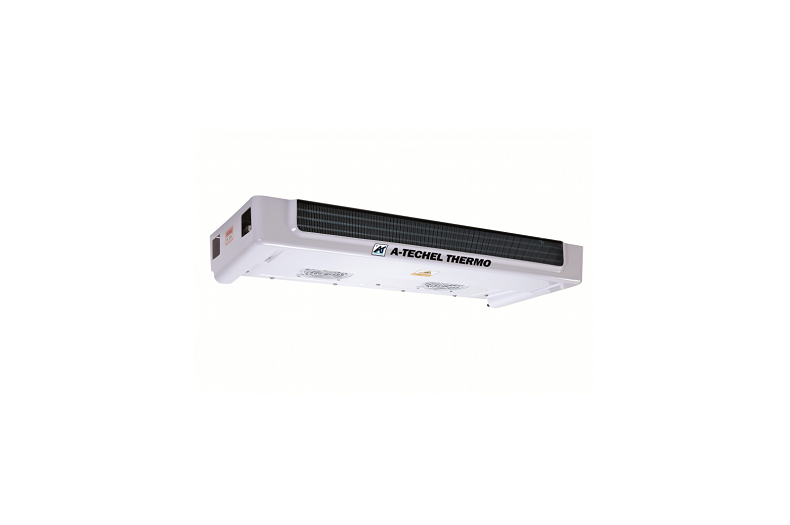

- Evaporator
- Type - Copper tube / Aluminum fin coils
Fan - 2 turbo fan (230mm – 1650m3 / h)
Weight – 23.3Kg
Dimension (LxWxH) – 1260 x 593 x 185
본문
Specification
* Please note, below information can
be changed without prior notice to improve its quality and design.
| ||||||||||||||||||||||||||||||||||||||||||
