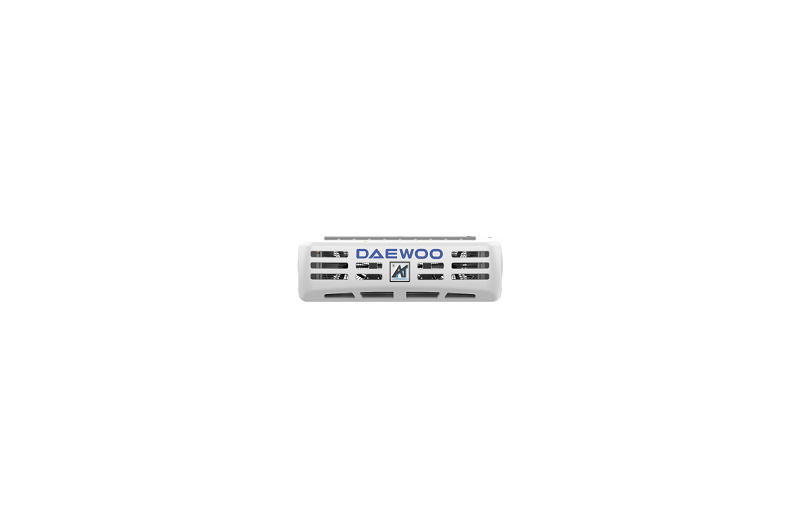

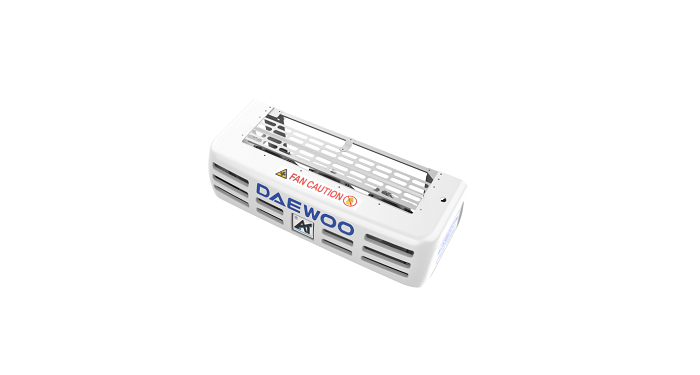

RX-700ll
VEHICLE ENGINE DRIVEN REFRIGERATION
(TATA DAEWOO OEM PRODUCT)
- Description
- Rooftop mounted refrigerator for vans
Compressor driven by vehicle engine
Separated composition - 3 plastic axial fan condenser and 3 plastic axial fan evaporator

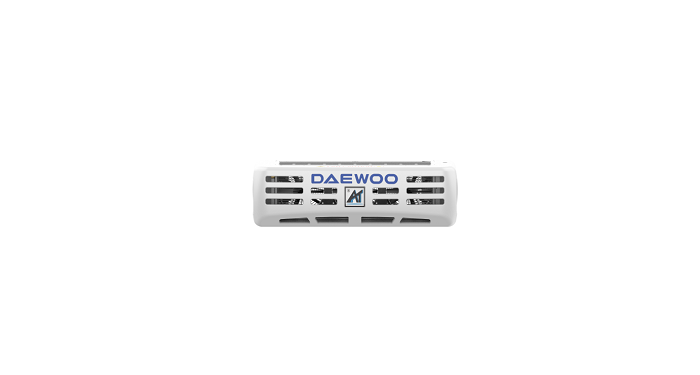

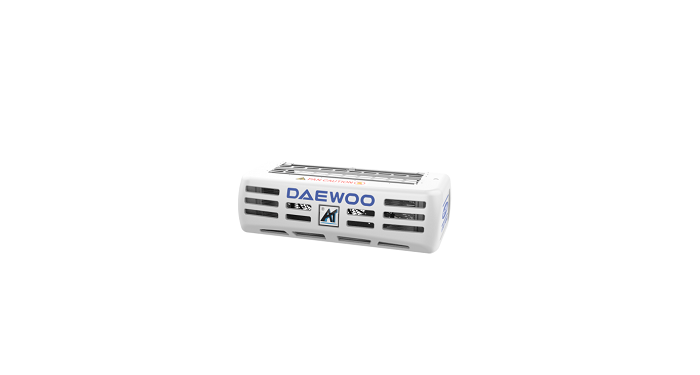

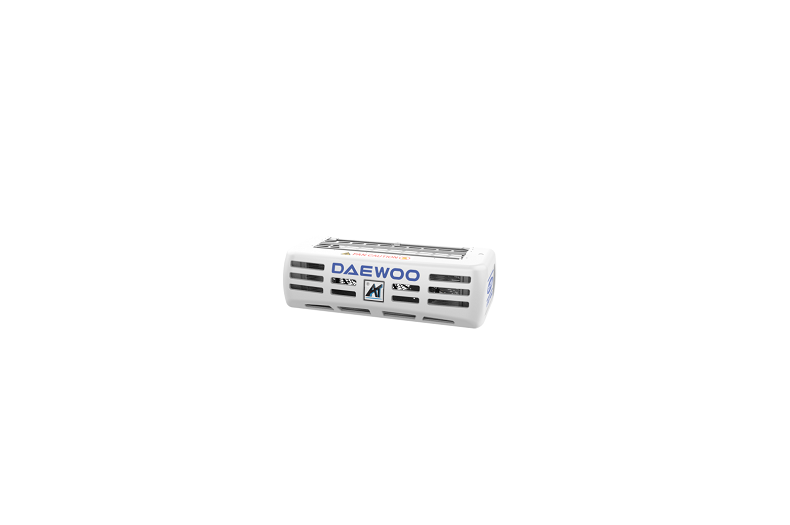

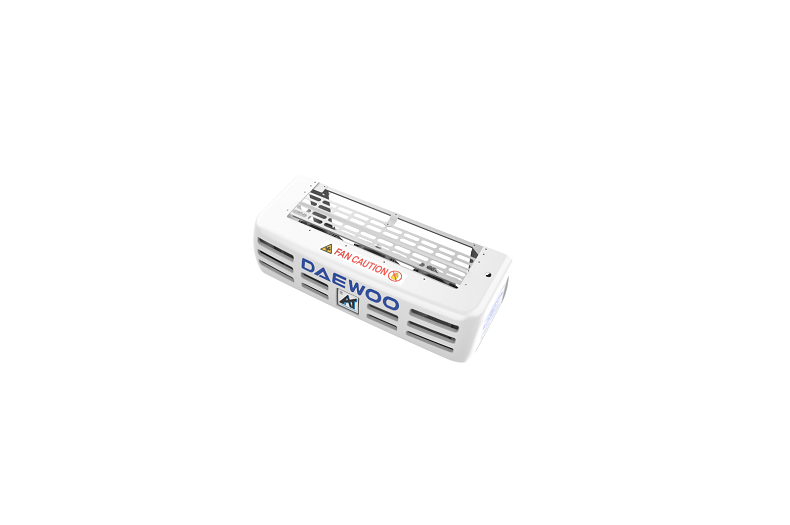

- Condenser
- Type - Copper tube / Aluminum fin coils
Fan - 3 plastic axial fan (280mm)
Weight – 36.0Kg
Dimension (LxWxH) – 1280 x 516 x 378

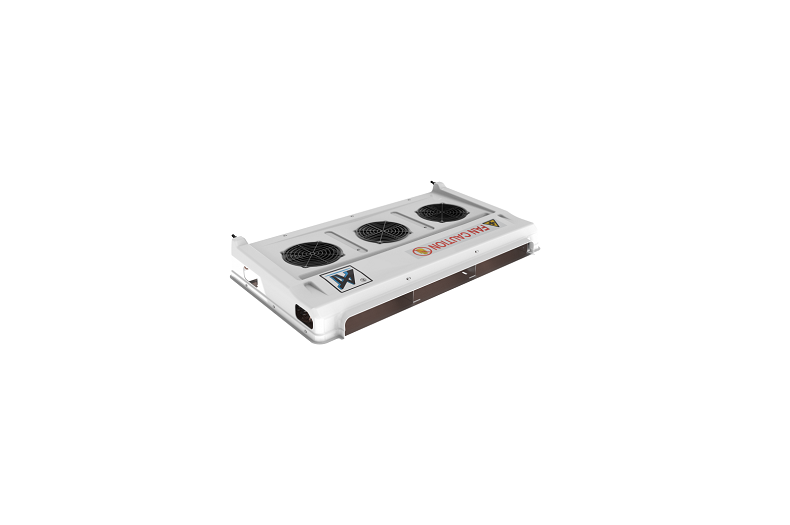

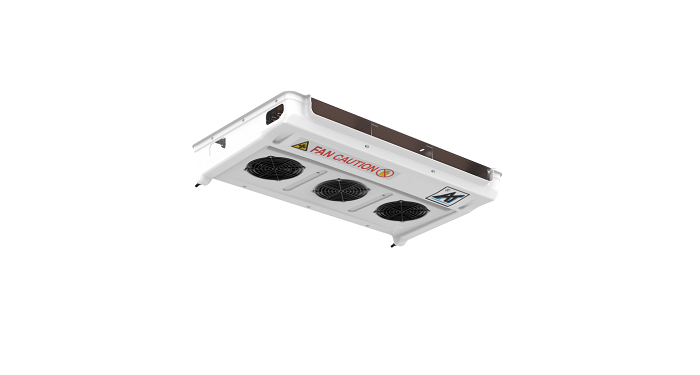

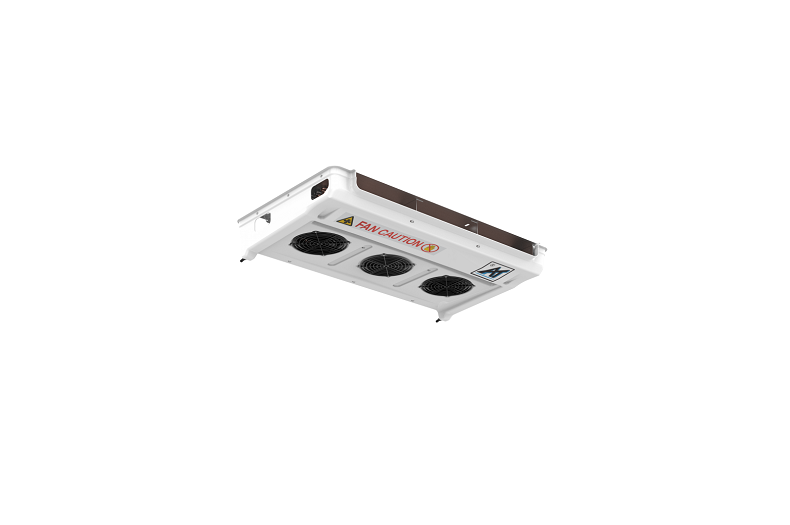

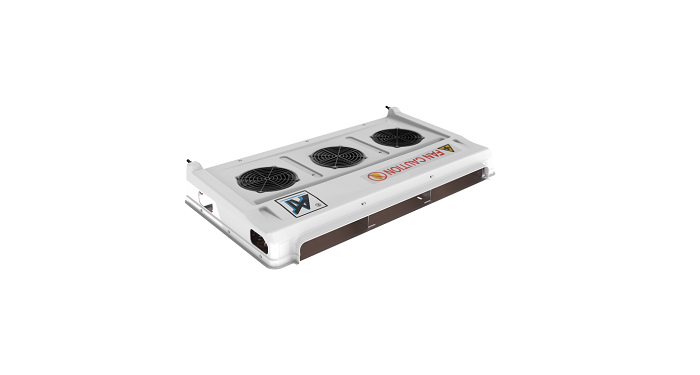

- Evaporator
- Type - Copper tube / Aluminum fin coils
Fan - 3 plastic axial fan (250mm – 2100m3 / h)
Weight – 27.0Kg
Dimension (LxWxH) – 1498 x 855 x 208
본문
Specification
* Please note, below information can be changed without prior notice to improve its quality and design.
|
|||||||||||||||||||||||||||||||||||||||
