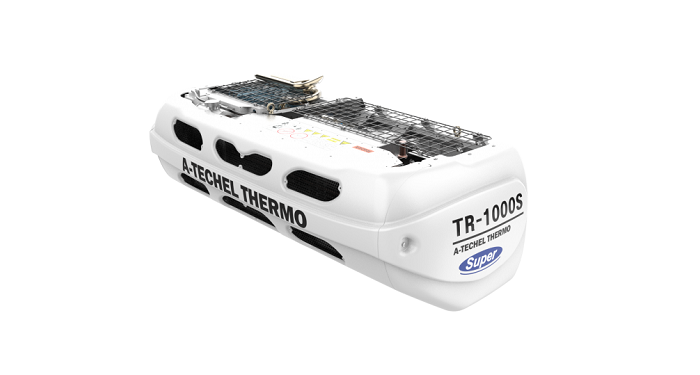

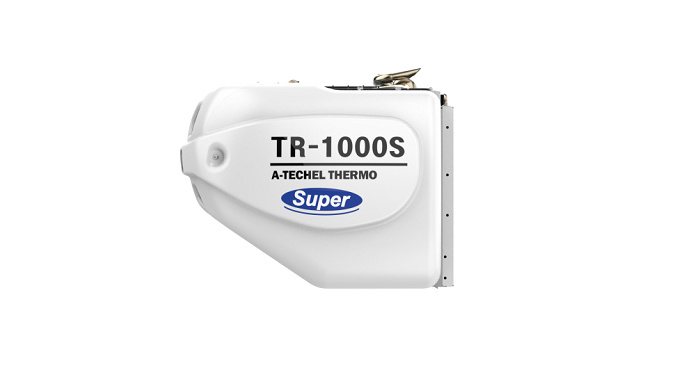

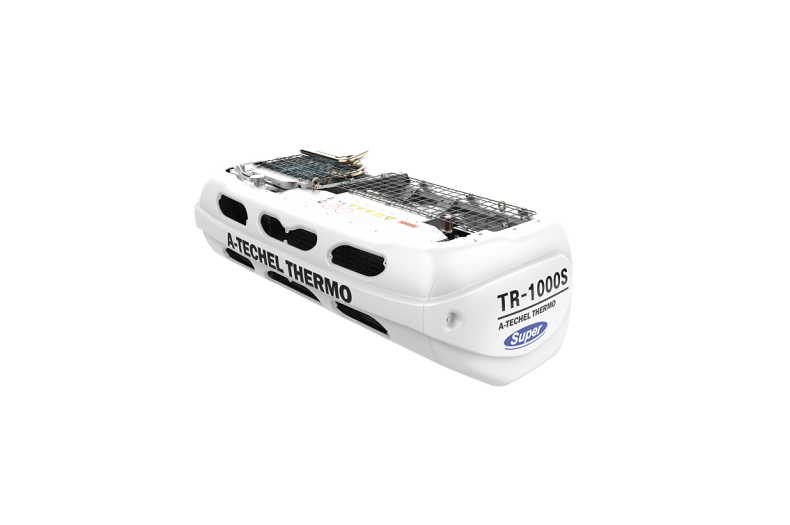

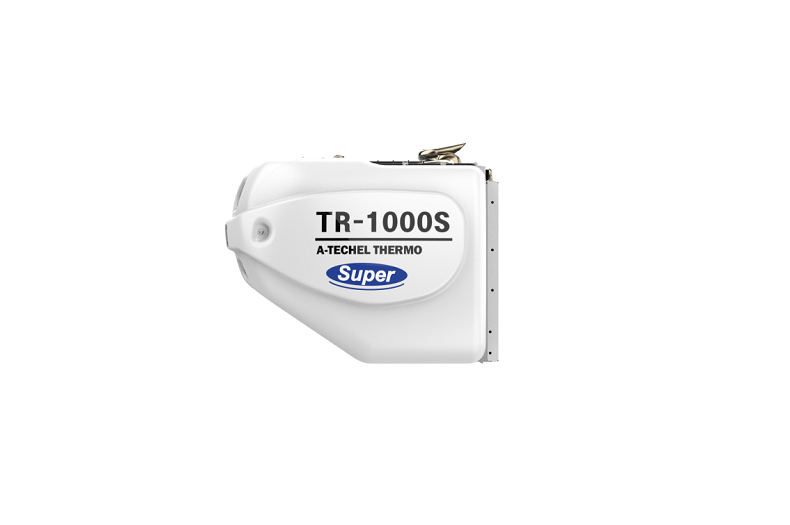

TR-1000S WALL-TYPE
The TR series is truck refrigeration system, which is developed by A-TECH EL THERMO’s highest technology.
TR-1000S is driven by separated diesel engine, so that it is possible to proceed cooling system even the vehicle engine has shut down.
- Description
- Refrigeration system for medium or large truck
Compressor driven by sub diesel engine

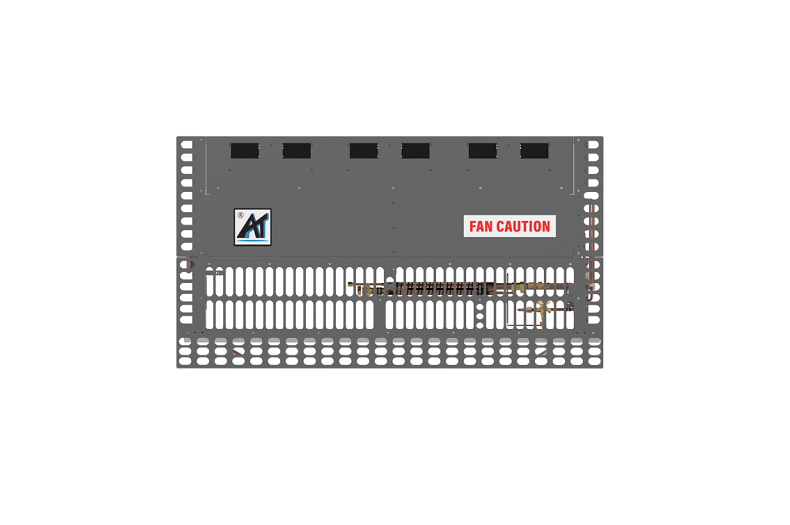

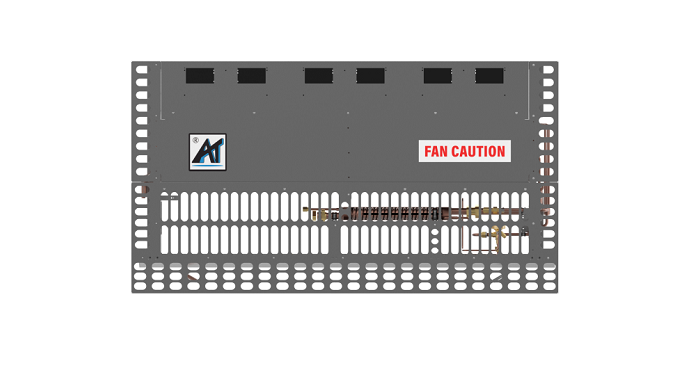

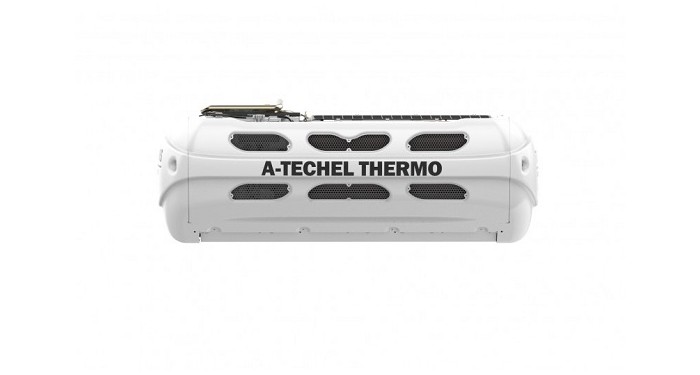

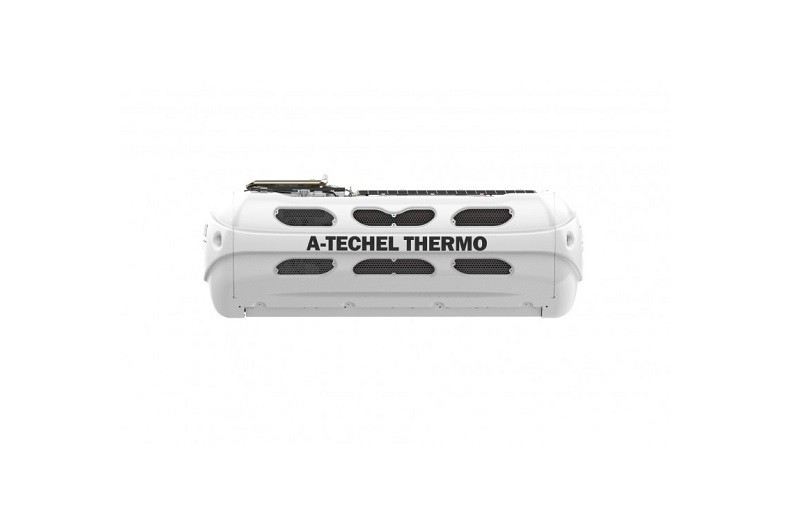

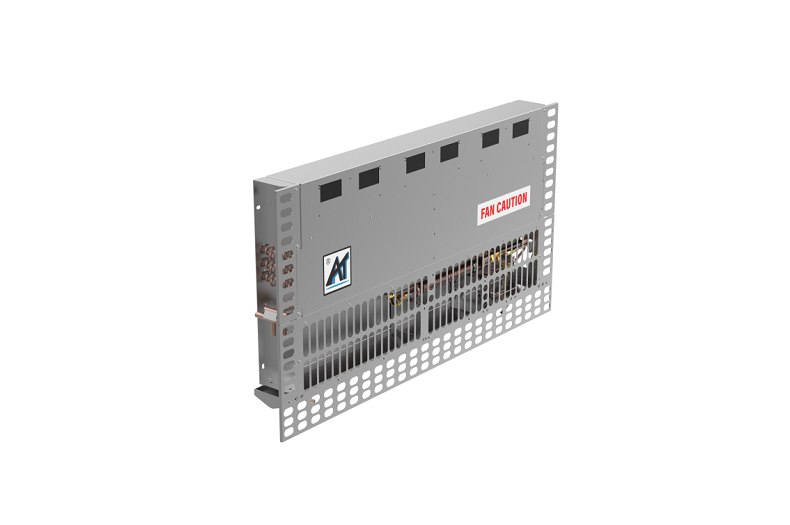

Separated composition – rooftop mounted condenser and wall-type evaporator
- Feature
- Advanced cooling capacity
Environment-friendly refrigerants
Various type of evaporators are available
- TR-1000S WALL-TYPE
본문
Specification
* Please note, below information can be changed without prior notice to improve its quality and design.
| Model | TR-1000S Buried Type | |||
| Engine | Country of origin | Japan | ||
| Model | Kubota / D-1105 | |||
| Cylinder | 3 cylinder | |||
| Weight | 93 Kg | |||
| Capacity | 1,123cc | |||
| Condenser | Type | PF TYPE & FIN & TUBE TYPE | ||
| Fan Drive | Driven by engine belt | |||
| Size | 1937L X 885W X 652H | |||
| Evaporator | Type | FIN & TUBE TYPE | ||
| Fan Drive | DC 12V / (14.5AMP 3350 RPM) X 3EA | |||
| Size | 1740L X 948W X 166H | |||
| Compressor | Country of origin | Germany | ||
| Model | BITZER / 4NFRY | |||
| Cylinder | 4 cylinder | |||
| Displacement | 470 cc | |||
| Gross Weight | Weight | Kg | ||
| Voltage | Type | DC 12V | ||
| Refrigerant | Type | R-404a | Amount | 3.8 Kg |
| Cooling Capacity | Temperature( ℃) | watt | Remarks | |
| 0 | 4,450 | |||
| -20 | 2,430 | |||
| Thermostat | Automatic ON/OFF at the set temperature. Limit ambient temperature/humidity : -30℃ ~ 40℃ / less than 80Rh % | |||
| Defrost |
HOT GAS Electric automatic defrost / Manual defrost controled by controller | |||
