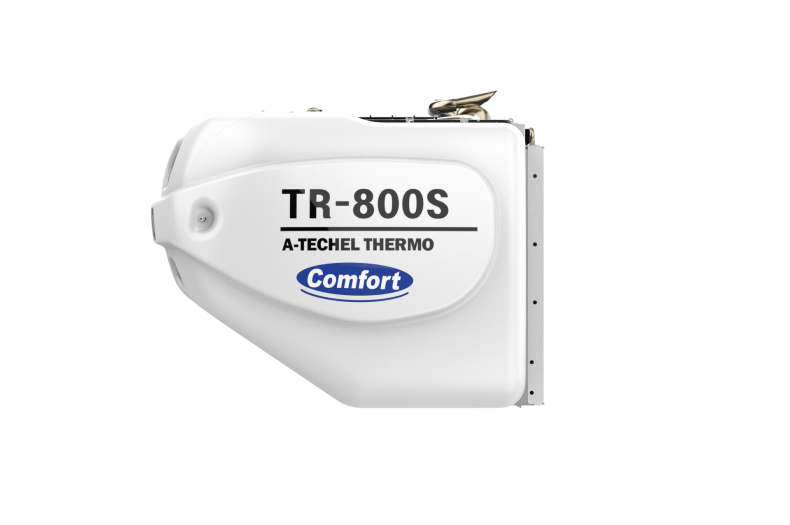

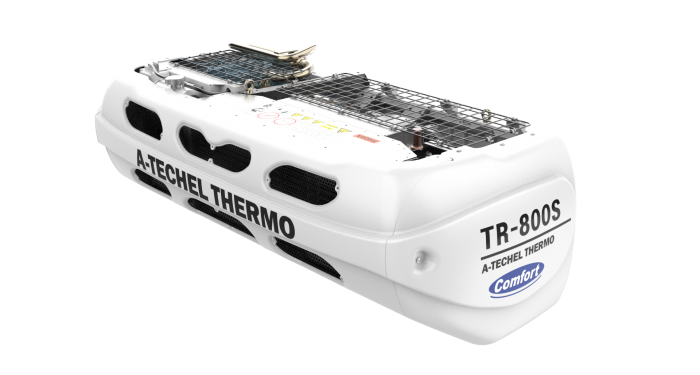

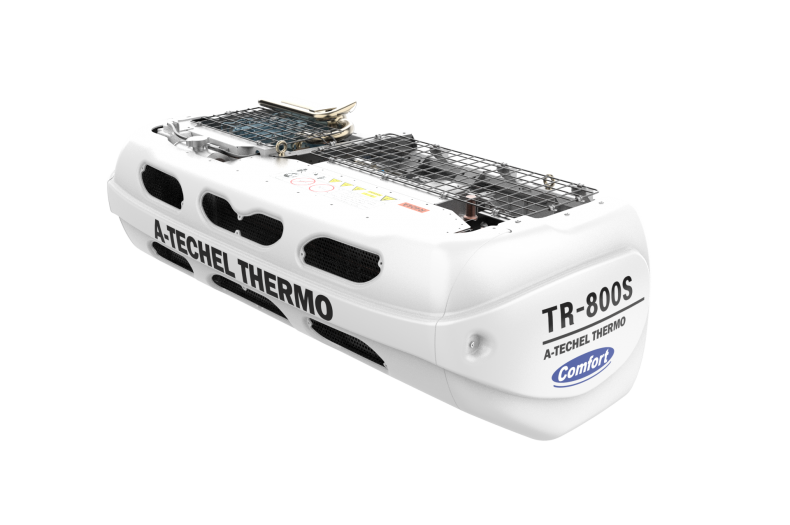

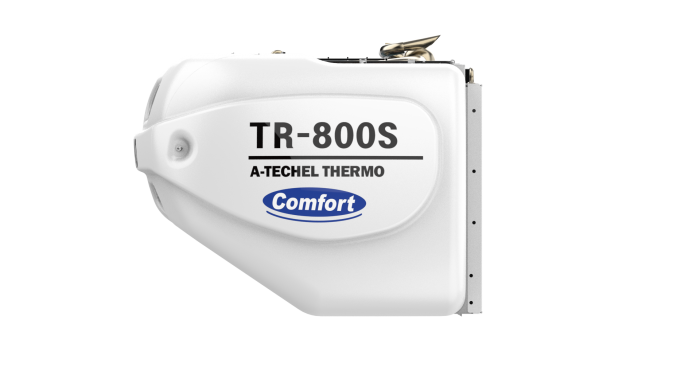

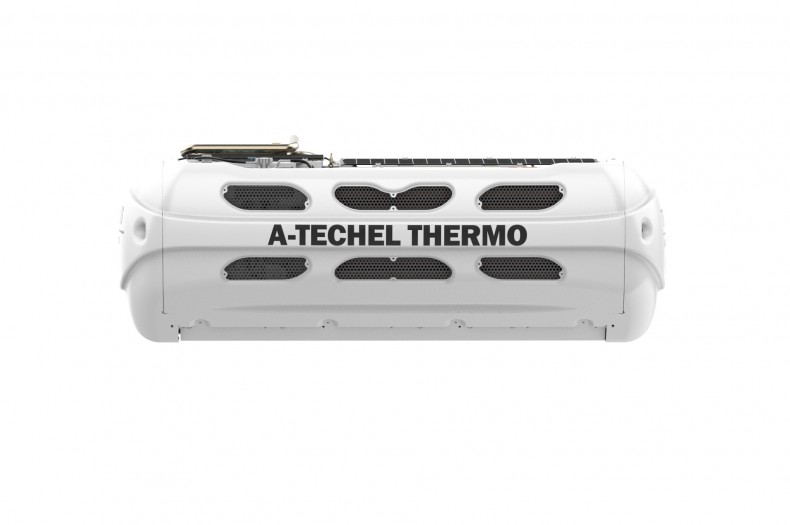

TR-800S WALL-TYPE
The TR series is truck refrigeration system, which is developed by A-TECH EL THERMO’s highest technology.
TR-800S is driven by separated diesel engine, so that it is possible to proceed cooling system even the vehicle engine has shut down.
- Description
- Refrigeration system for medium truck
Compressor driven by sub diesel engine

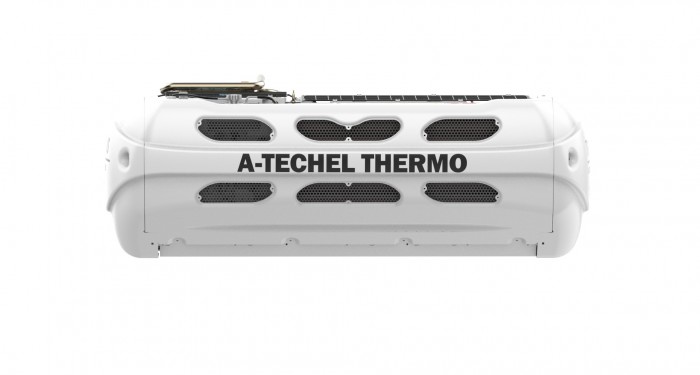

Separated composition – rooftop mounted condenser and wall-type evaporator
- Feature
- Advanced cooling capacity
Environment-friendly refrigerants
Various type of evaporators are available
- TR-800S WALL-TYPE
본문
Specification
* Please note, below information can
be changed without prior notice to improve its quality and design.
| Model | TR-800S WALL-TYPE | |||
| Engine | Country of Origin | Japan | ||
| Model | Kubota / D-1105 | |||
| Cylinder | 3 cylinder | |||
| Weight | 93.0 Kg | |||
| Capacity | 1,123cc | |||
| Condenser | Type | PF TYPE & FIN & TUBE TYPE | ||
| Fan Drive | Driven by engine belt | |||
| Size | ||||

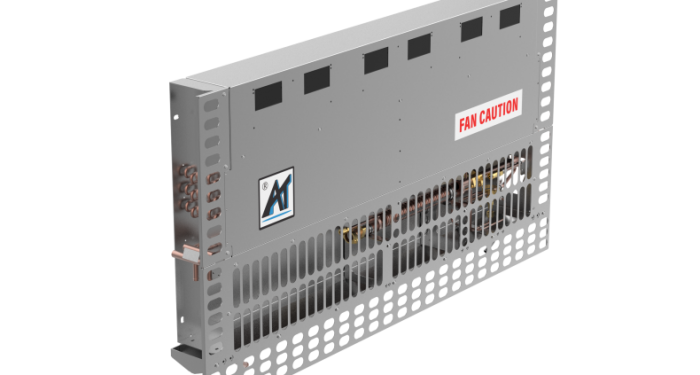

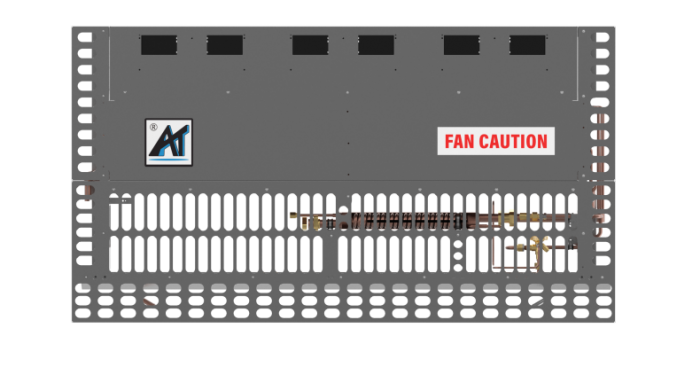

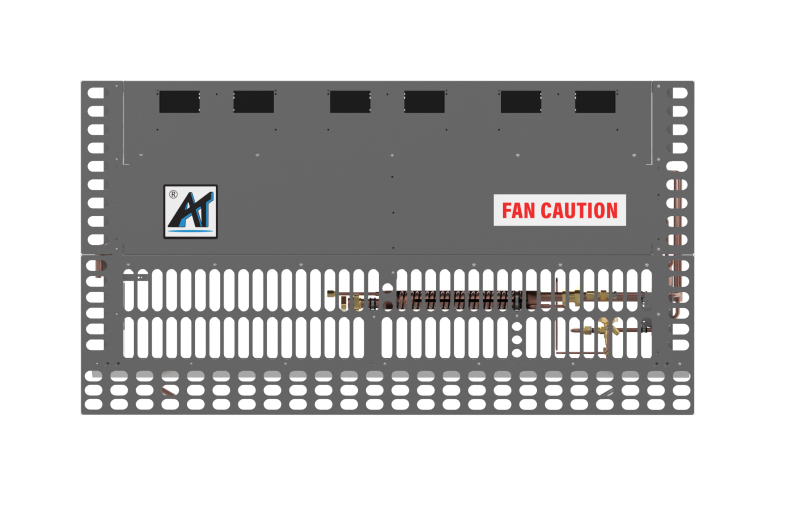

| Evaporator | Type | FIN & TUBE TYPE | ||
| Fan Drive | DC 12V / (14.5 AMP 3350 RPM) X 3EA | |||
| Size | ||||
| Compressor | Country of Origin | Germany | ||
| Model | BITZER / 2NFRY | |||
| Cylinder | 2 cylinder | |||
| Displacement | 354 cc | |||
| Gross Weight | Weight | 510 Kg | ||
| Voltage | Type | DC 12V | ||
| Refrigerant | Type | R-404a | Amount | 3.5 Kg |
| Cooling Capacity | Temperature( ℃) | watt | Remarks | |
| 0 | 4,450 | |||
| -20 | 2,430 | |||
| Thermostat | Automatic
ON/OFF at the set temperature. Limit ambient temperature/humidity : -30℃ ~ 40℃ / less than 80Rh % | |||
| Defrosting | HOT GAS Electric automatic defrost / Manual defrost controlled by controller |
|||
