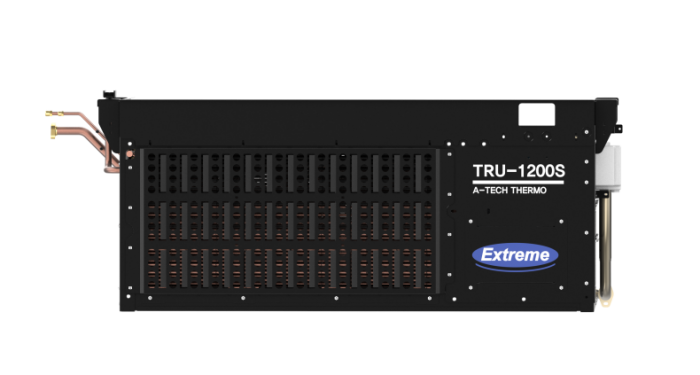

TRU-1200S SLIM-TYPE

The TRU series is truck refrigeration system, which is developed by A-TECH EL THERMO’s highest technology.
TRU-1200S is driven by separated diesel engine, so that it is possible to proceed cooling system even the vehicle engine has shut down.

  • Description
  • Refrigeration system for medium or large truck

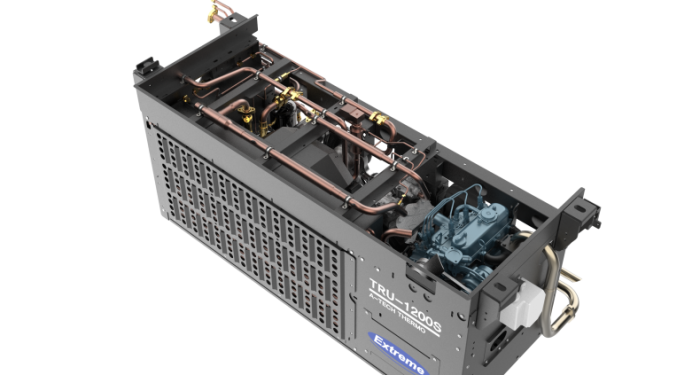

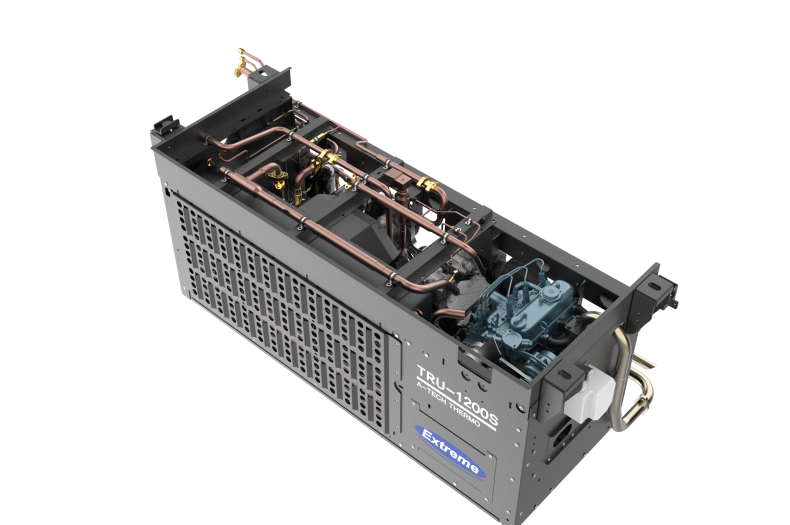

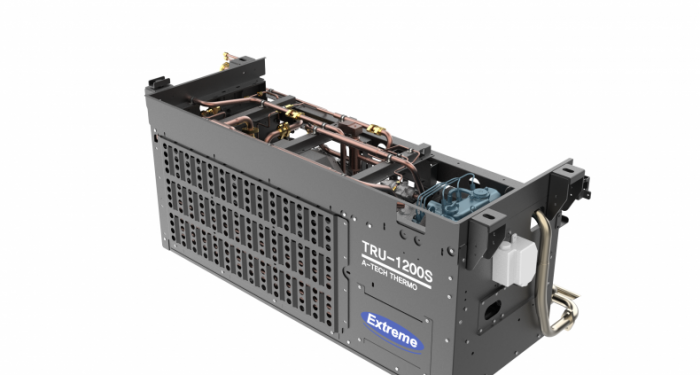

    Compressor driven by sub diesel engine

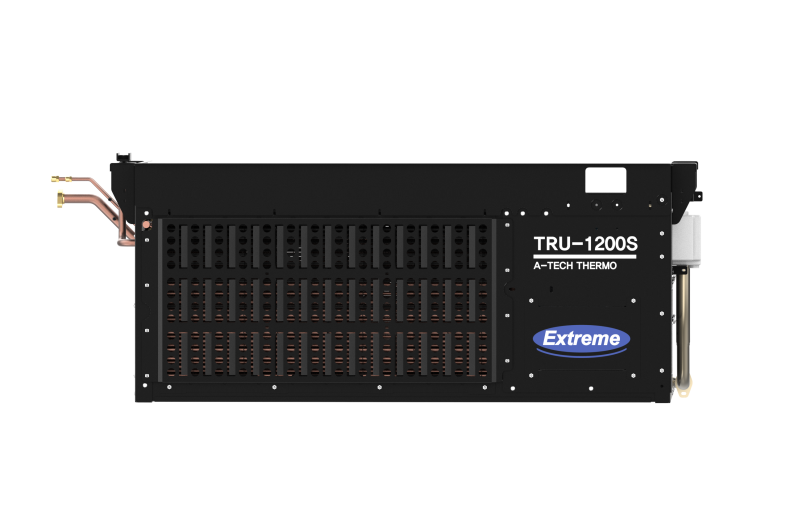

    Separated composition – under mounted condenser and slim-type evaporator
  • Feature
  • Advanced cooling capacity
    Environment-friendly refrigerants
    Various type of evaporators are available

  • TRU-1200S SLIM-TYPE

본문

Specification

Please note, below information can be changed without prior notice to improve its quality and design.



Model

TRU-1200S SLIM-TYPE EVAPORATOR

Engine

Model

KUBODA D-1105, JAPAN

Cylinder

3 cylinders

R.P.M

2,0002,400

Displacement

1105cc

Compressor

Pulley

Magnet Clutch

Model

BITZER, GERMANY / 4PFRY

Cylinder

4 cylinders

Displacement

560cc

AC

STANDBY

(*Option)

AC MOTOR

380V50/60HZ/9KW

Condenser

TYPE, FAN

420 * 6B * 1ea

FAN DRIVE

Driven by Engine belt

Evaporator

TYPE, FAN

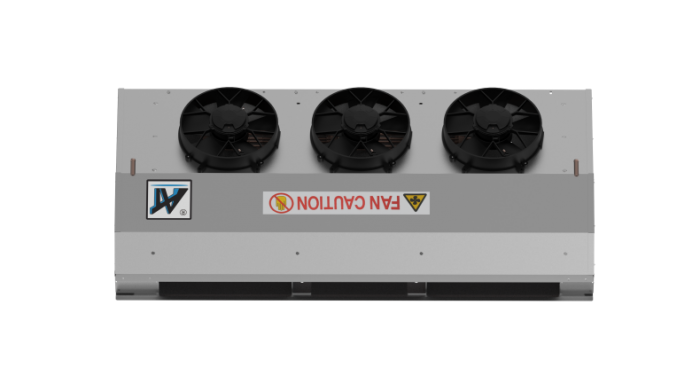

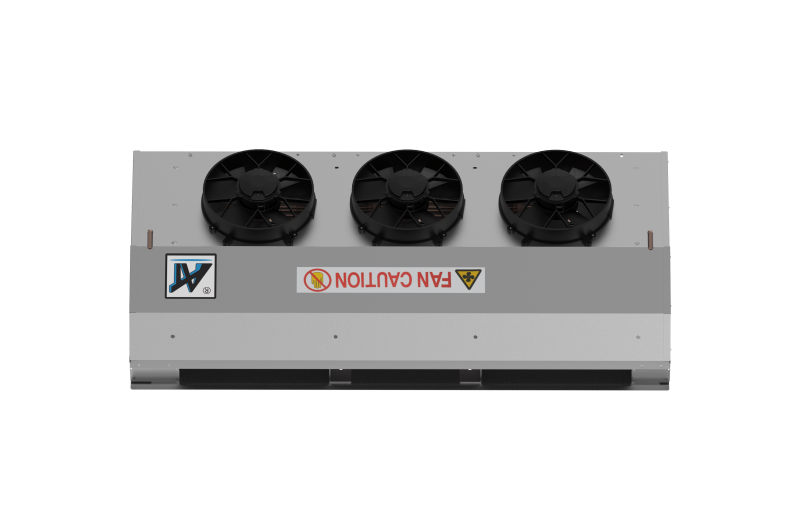

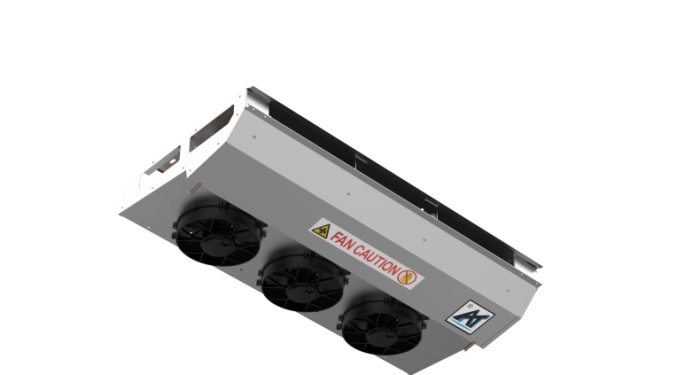

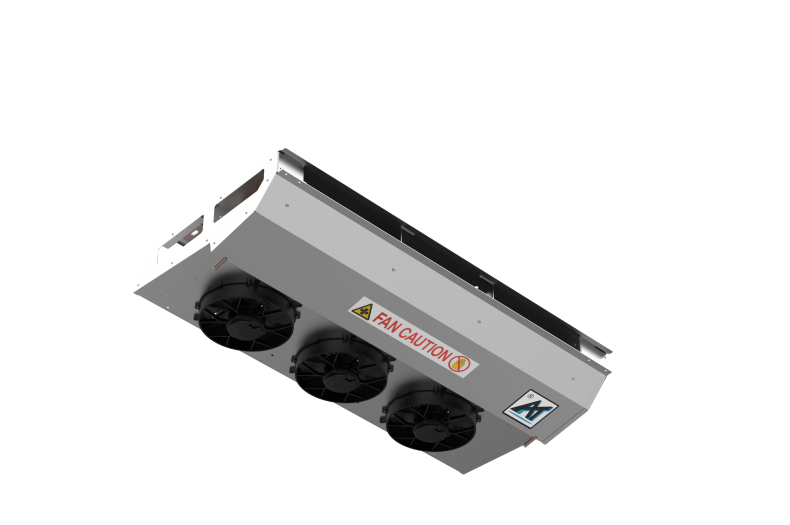

Slim-type evaporator (L: 1665 / W: 760 / H: 216 )

FAN DRIVE

DC12V AXIAL FAN MOTOR * 3EA

Refrigerants

R-404A / 4.4Kg ± 100g

Defrosting

Hot gas auto-defrost or manual-defrost

Heating

1. COOLANT auto-control

2. Hot Gas operating simultaneously

Operation

*Temperature controller (LED display)

*Temperature setting & Automatic on/off system

Case

Frame : GI steel, Powder coating Grill : AL/TYPE

Weight

468KG
